osciloskop 100MHz novo

Postavljen Feb 18, 2024 | Pregleda: 932
CENA: 130EUR

+3********Prikaži broj
Lokacija.: Pančevo

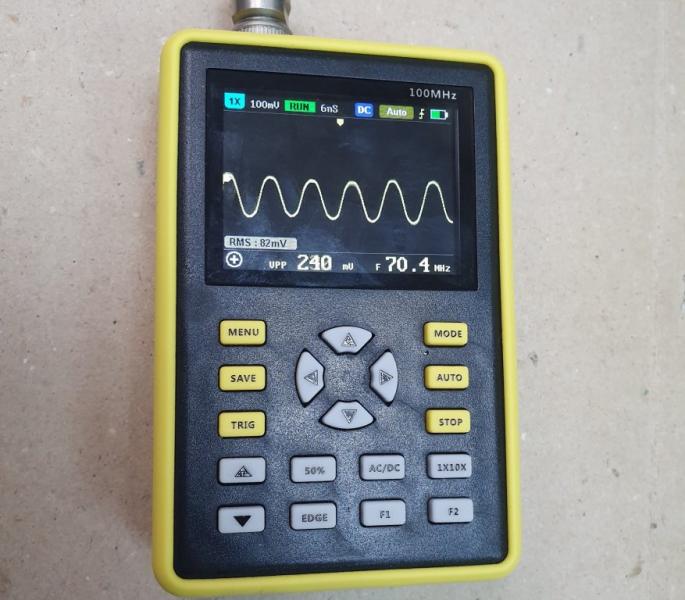

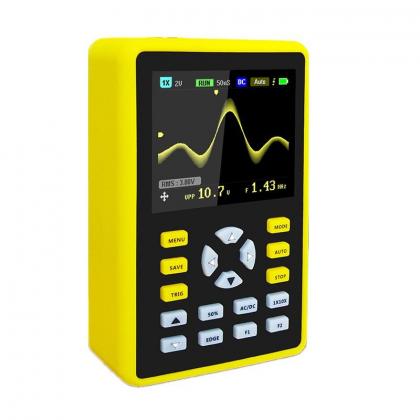

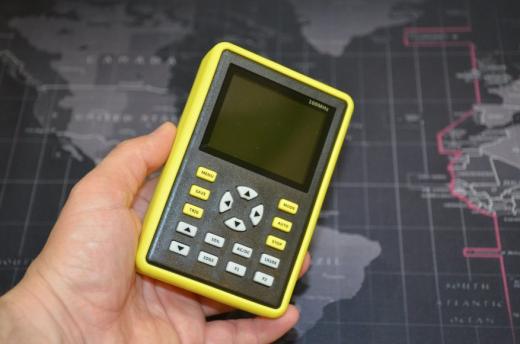

Osciloskop 100MHz, 500MS/s Sampling Rate , baterija punjiva drzi 8h rada, izuzetan uredjaj za profesionalce i rad na terenu. Novo nekorisceno. Karakteristike

1:Analog band width: 100MHz
2:Maximum real time sampling rate: 500MS/s
3:Vertical sensitivity: 50 mV/div ~ 100 V/div
4:Horizontal time base range: 50S/div ~ 6nS/div
5:Maximum test voltage: 80 V (1X probe), 800 V (10X probe)
6:Storage depth: 128KB
7:Input resistance: 1M
8:ADC precision: 8bits
9:Coupling mode: AC/DC
10:Trigger mode: Single, Normal, Auto
11:Trigger edge: Ascending/descending edge
12:External trigger voltage 0 – 80 V
13:Display: 2.4 inch - 320*240
14:Power supply: 3000 mAh lithium battery
15:Size: 114mm x 74mm x 33mm
16:Weight: 250g
osnovne karakteristike
1:Intelligent anti-burn,1X Can withstand up to 600V withstand voltage
2:Afterglow display technology
3:2.4 inch color display screen
4:100MHz analog bandwidth @ 500MS/s sampling rate(1X = 5MHz,10X = 100MHz)
5:One-button waveform storage
6:Built-in 64M storage space, the maximum storage of 2000 waveform pictures
7:Powerful waveform file manager, support thumbnail browsing, viewing, details view, flip, delete and other functions
8:High measurement voltage range, 1X can measure 0 ~ 80 V, 10X can measure 0 ~ 800V
9:Up to 12 parameters measurement:VPP,VP,Vmax,Vmin,Vavg,Vrms,Frequent,Duty+,Duty-,Time+,Time-,Time
10:At any time, the waveform display (pause function) is frozen
11:Equipped with high efficiency One-button AUTO
12:Complete triggering function (single, normal, automatic)
13:Built in 3000mAh rechargeable lithium battery,Fully charged for 8 hours of continuous use 14:Screen brightness adjustment
15:Memory compression technology, waveform refresh screen does not flicker
16:Anti-slip anti-drop silicone sleeve
17:Ultra small volume, easy to carry
